Yardarm Marine Products - Made In Indiana

Stern Drive Installers

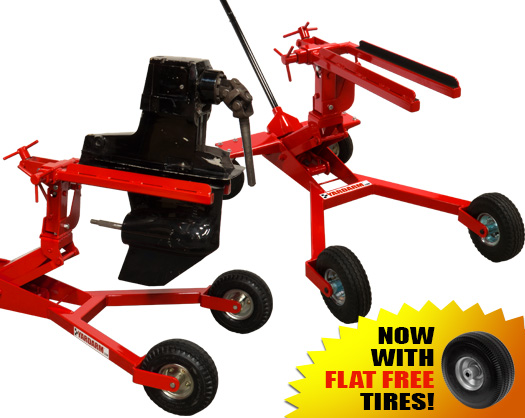

The Original Yardarm™ Stern Drive Installers, And Still The Best

Yardarm Stern Drive Installers

Key Benefits:

  • Unique, low cost shop tool
  • NEW "FLAT FREE" foam filled tires (both models)
  • Wide wheel base for stability
  • Works on all makes and models
  • Fork width adjusts from 6" (15.2 cm) to 12.5" (31.2 cm)
  • Fork height adjusts from 19" (48.3 cm) to 33" (83.8 cm) from floor
  • Allows one person to remove and install stern drives
  • Especially helpful on boats with integrated swim platforms
  • No more injuries or damaging boats while trying to hoist the drive unit
  • Clamping arms adjustable in all 3 axes for secure removal of drives on uneven ground or tilted trailers
  • Powder coat tough finish

Available Models:

Yardarm JO6HD Stern Drive Installer

Heavy Duty Stern Drive Installer

Part Number / Capacity
JO6HD
Features 4 "flat free" tires

Appropriate for use outdoors, on gravel and uneven ground
500 lbs (225 kg) Capacity

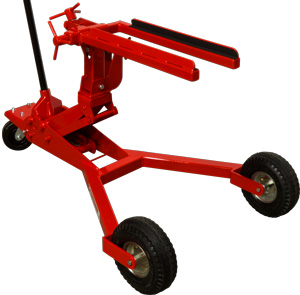

Shop Use Stern Drive Installer

Part Number / Capacity
JO5L
Features 2 "flat free" tires and a single rear caster

Appropriate for use on level hard surfaces only
500 lbs (225 kg) Capacity
Yardarm JO5L Stern Drive Installer

















Available Accessories:

Yardarm Stern Drive Installer Lift Kits 2-Bolt "Quick Change" Lift Kits:
Extends vertical reach of stern drive installers

Part Numbers
JO-LK-5 5" (12.7 cm) Lift Kit
JO-LK-10 10" (25.4 cm) Lift Kit
JO-LK-15 15" (38.1 cm) Lift Kit
Yardarm Stern Drive Installer Lift Kit Manual
Lift Kit Installation Manual



No. 6 Stern Drive Adaptor Plate For Stern Drive Installers #6 Stern Drive Adaptor Plate
Allows stern drive installers to
securely hold #6 stern drives

Part Number
SD6AP



Stern Drive Installer With Accessories

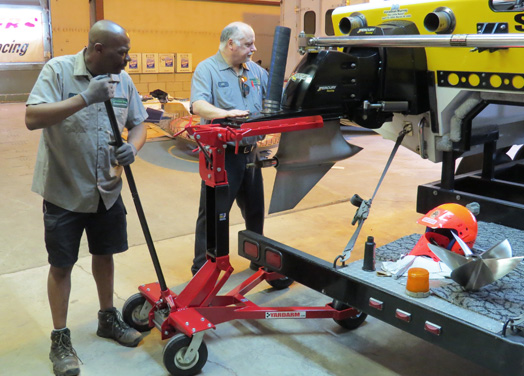

Yardarm Stern Drive Installer In Use JO6HD shown with #6 Stern Drive Adaptor Plate and 15" Lift Kit removing stern drive from Peppers Racing Boat
