Yardarm Marine Products - Made In Indiana

Boat Dolly Systems

Yardarm Boat Dolly Systems
MJ10 - Mega Dolly Shown

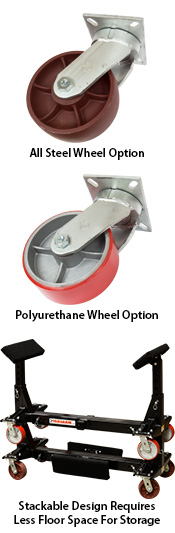

Yardarm Boat Dolly Wheel OptionsKey Benefits:

  • Designed to accommodate most hull configurations
  • Quick pitch adjustment for frames and height and/or width allows a firm seat for the hull to the pads without strake interference
  • Specially designed pads limit the side to side pitch movement alleviating physically holding the pads in position during boat placement
  • Large bunks disperse weight over a large surface area and feature high quality marine grade carpet
  • Bunks can be set at different heights to tilt boats for display
  • Powder coat tough finish (for a great look in your showroom)
  • Optional galvanized finish for extra durability in salt water applications (MJ10 & MJ48 only)
  • MJ10 and MJ48 dollies can be ordered with all steel casters for maximum ease of rolling or polyurethane casters to protect showroom floors
  • All steel wheels are highly recommended because they offer greater ease of movement. Polyurethane wheels are recommended only when being used on surfaces that will be damaged by steel wheels like tile and marble.
  • MJ10 and MJ48 dollies are equipped with roller bearings and grease fittings on each wheel and king pin assembly
  • Dollies can be linked together to meet specific weight capacities. See DOLLY-LINK SYSTEM Below.
  • MJ10 and MJ48 dollies are stackable requiring half the floor space for storage than the competition
  • ED36 Economy Dolly comes with 6" x 2" hard phenolic casters (Great casters for shop or showroom)
  • Optional catamaran bunks available for MJ10 and MJ48 dollies
Yardarm Dolly-Link System All Yardarm Boat Dollies feature the DOLLY-LINK System for linking dollies together. Purchase the connecting tube/pipe at your local supply store in the length you need.
Connecting Tube/Pipe Specifications (Purchased Locally):
  • MJ10 & MJ48 Models - Purchase 2" O.D. steel square tube (11 gauge min). Drill 11/16" hole centered 1" from end to accommodate 5/8" Clevis Pin. 1 Clevis Pin & 1 Bridge Pin required for each end.
  • ED36 Models - Purchase 1-1/4" Black Pipe. Clevis Pins/Bridge Pins not required.
  • Related Components (Purchased From Yardarm):
    Clevis Pin Clevis Pin, 5/8" x 3"
    PN: MP01355
    (2 Required)
    Bridge Pin Bridge Pin
    PN: MP01287
    (2 Required)
















    Available Models:

    Mega Dolly

    Part Numbers / Capacities
    MJ10-AS
    (All Steel Wheels)
    16,000 lbs (7,250 kg) Capacity
    MJ10-PS
    (Polyurethane Wheels)
    10,000 lbs (4,500 kg) Capacity
    Yardarm MJ10 Mega Dolly

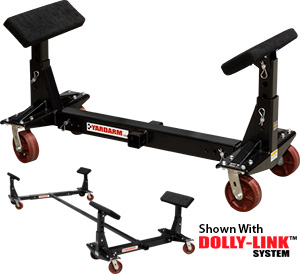

    Showroom Dolly

    Part Numbers / Capacities
    MJ48-AS
    (All Steel Wheels)
    4,800 lbs (2,170 kg) Capacity
    MJ48-PS
    (Polyurethane Wheels)
    4,800 lbs (2,170 kg) Capacity
    Yardarm MJ48 Showroom Dolly

    Economy Dolly

    Part Numbers / Capacities
    ED36
    (Phenolic Casters)
    3,600 lbs (1,630 kg) Capacity

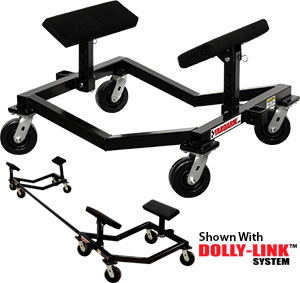

    Yardarm ED36 Economy Dolly




    Specifications:

    Part #
    MJ10
    MJ48
    ED36
    Part Name
    Mega Dolly
    Showroom Dolly
    Economy Dolly
    Extended Width

    97" (246.4 cm)

    63" (160 cm)

    42.5" (108 cm)

    Retracted Width

    65" (165.1 cm)

    42.5" (108 cm)

    33.5" (85 cm)

    Extended Height

    32.5" (82.5 cm)

    27" (68.6 cm)

    20.5" (52 cm)

    Retracted Height

    24" (60.9 cm)

    19" (48.3 cm)

    14.5" (36.8 cm)









    Catamaran Bunks:

    Part Numbers
    MJ10CB
    Catamaran Bunk for MJ10 Mega Dolly w/Pin & Clip (each)
    MJ48CB
    Catamaran Bunk for MJ48 Showroom Dolly w/Pin & Clip (each)
    Yardarm Boat Dolly Catamaran Bunks

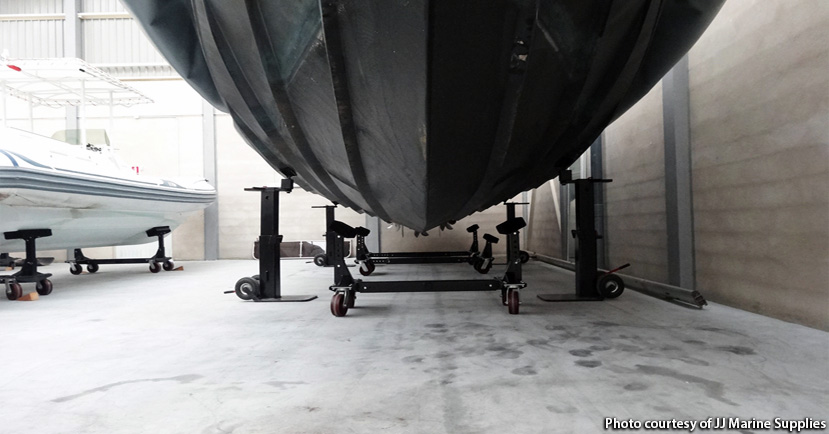

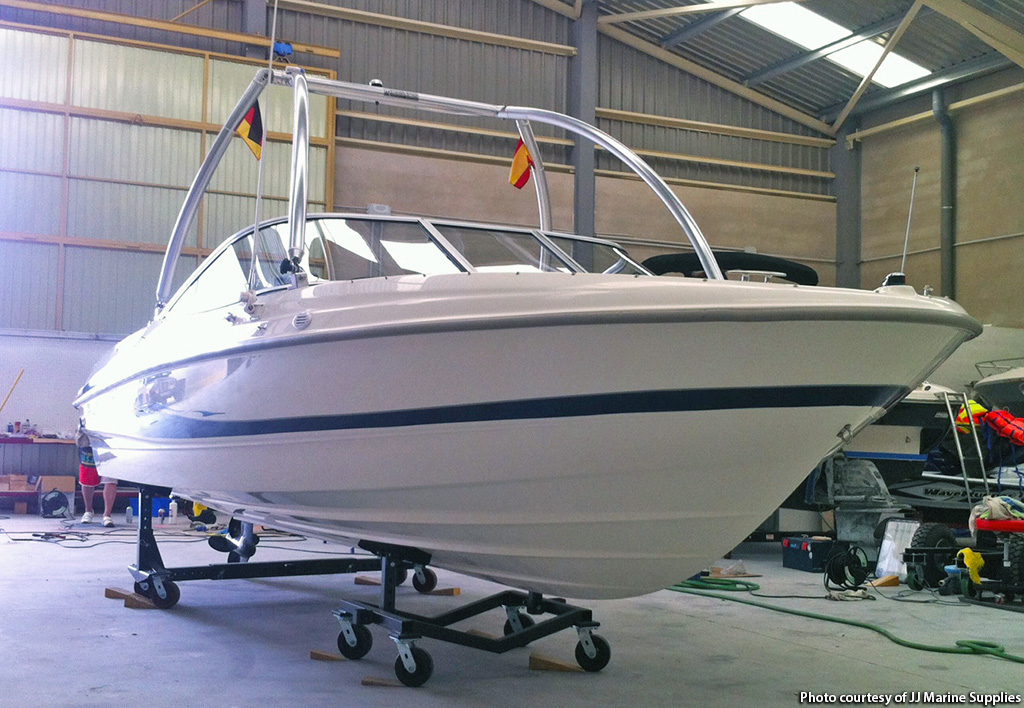

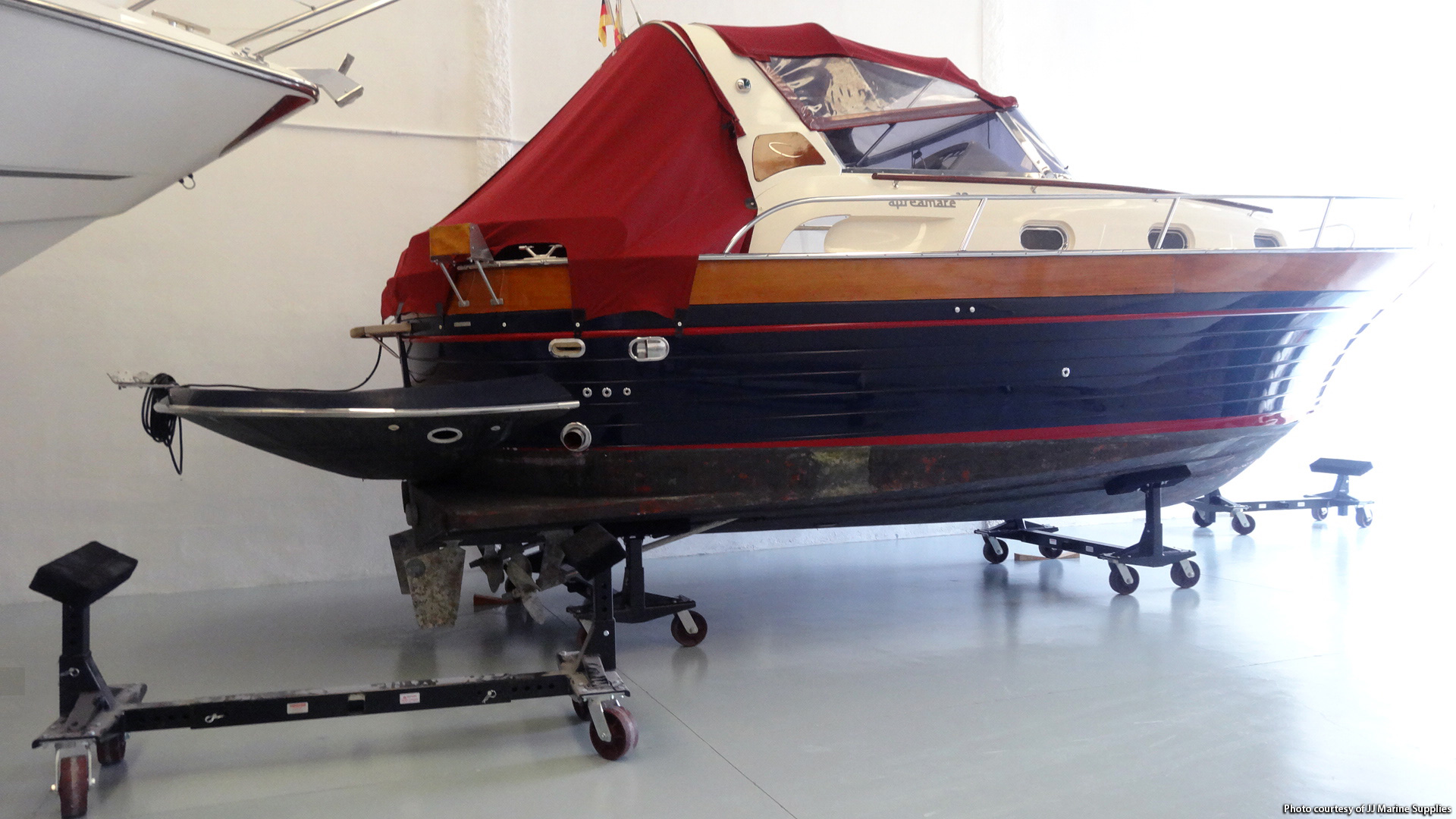

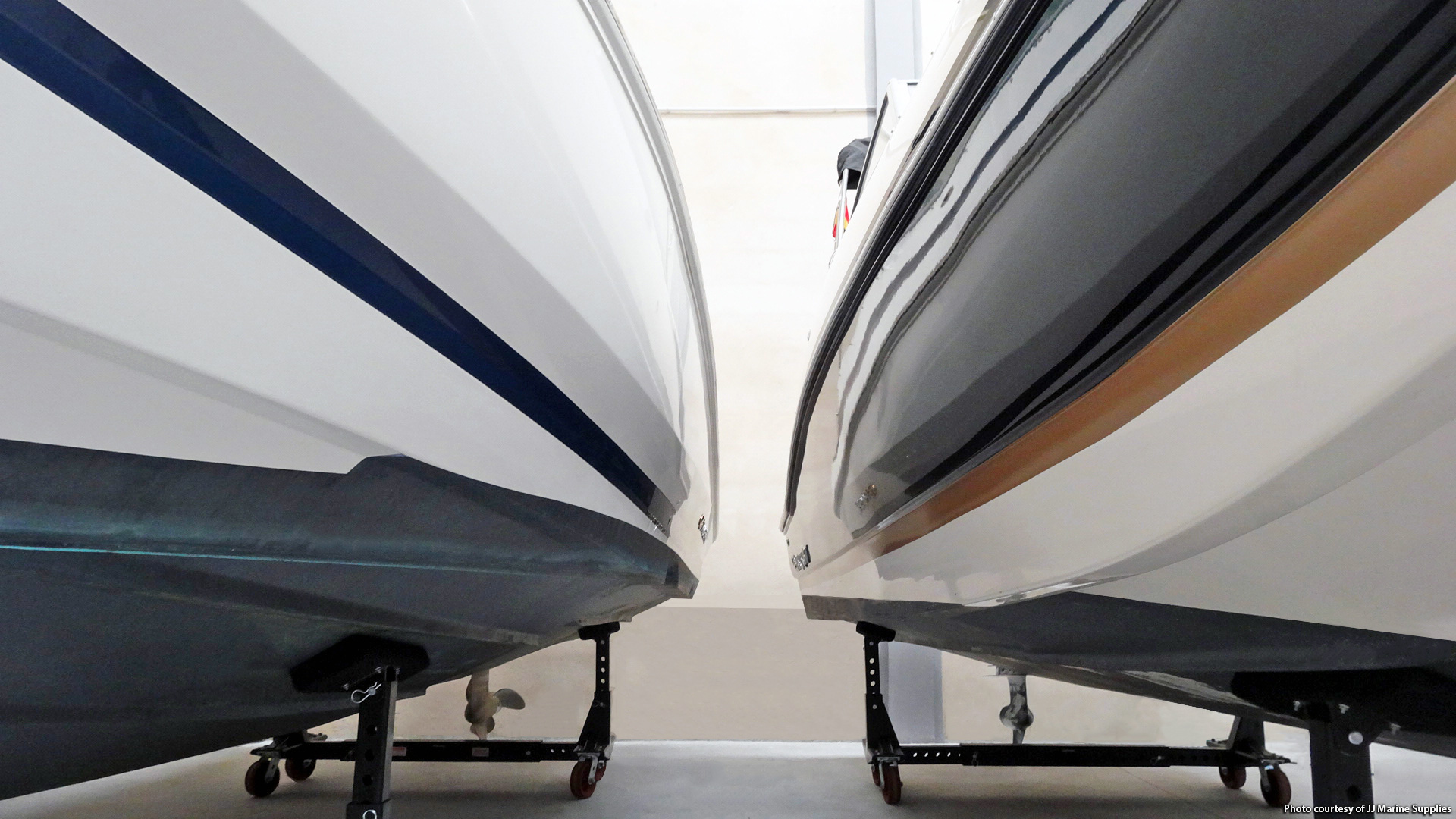

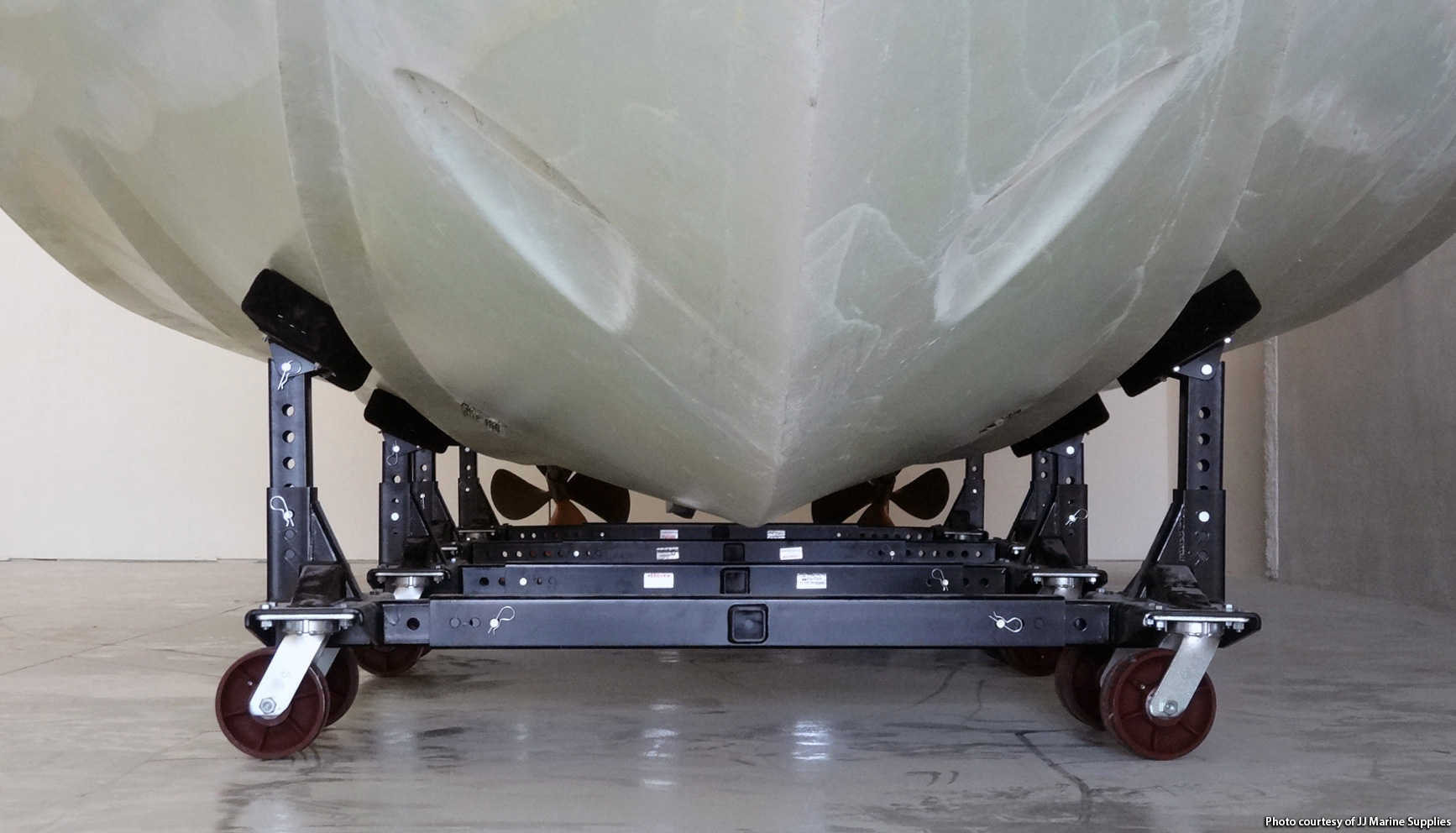

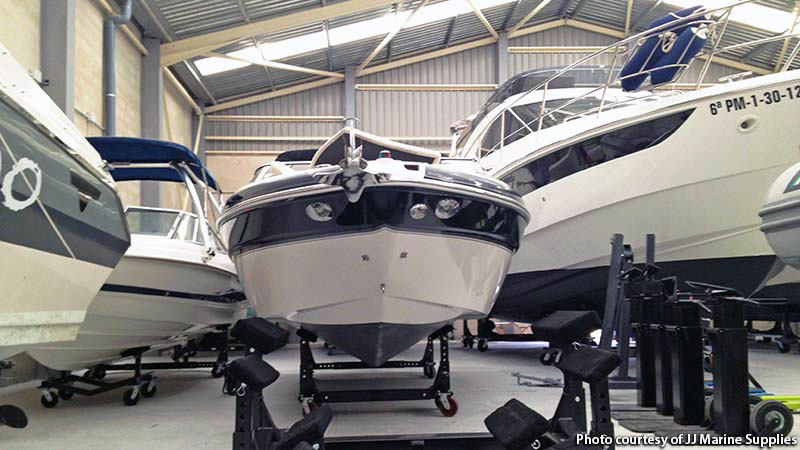

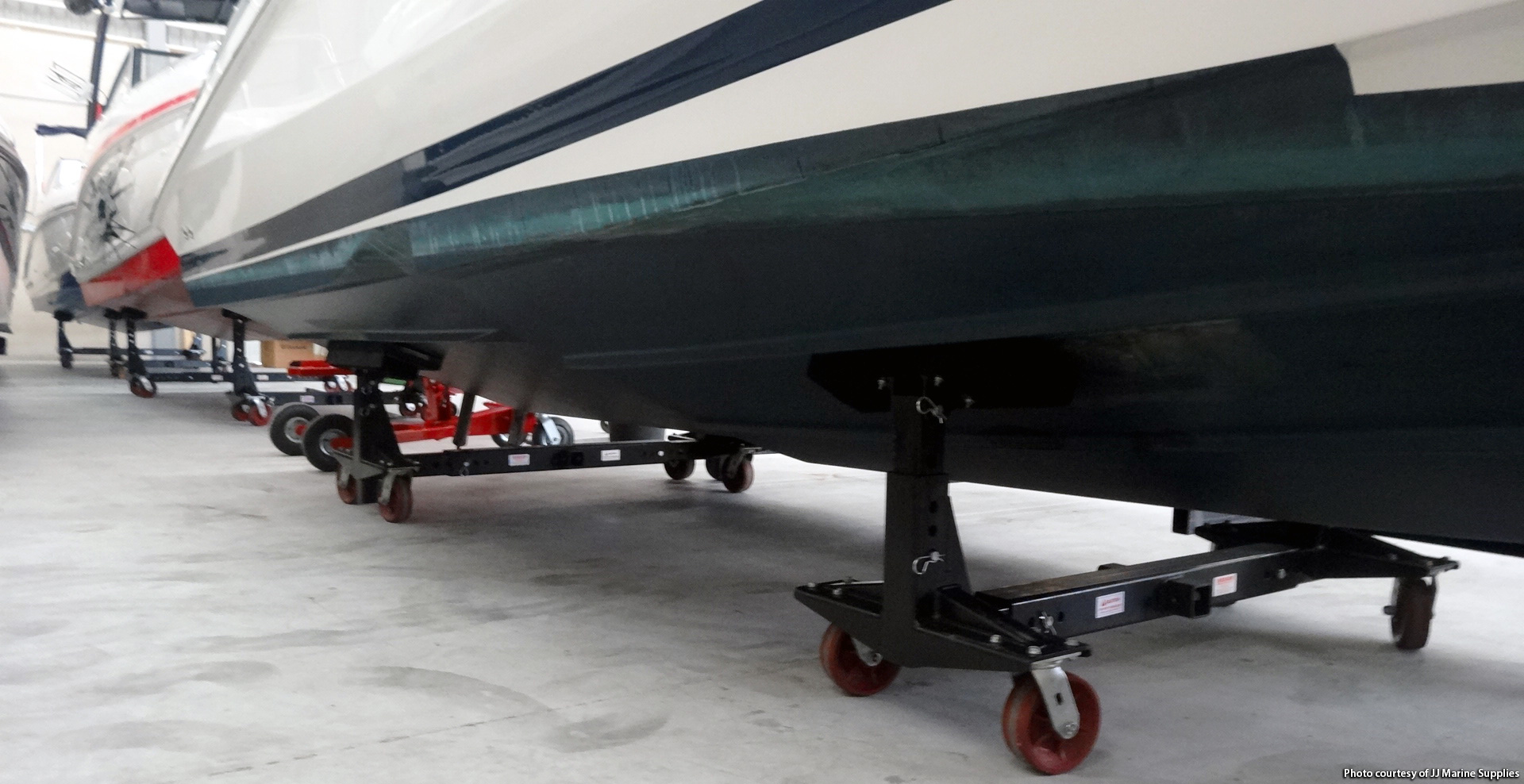

    Image Gallery:

    Click Images To Expand

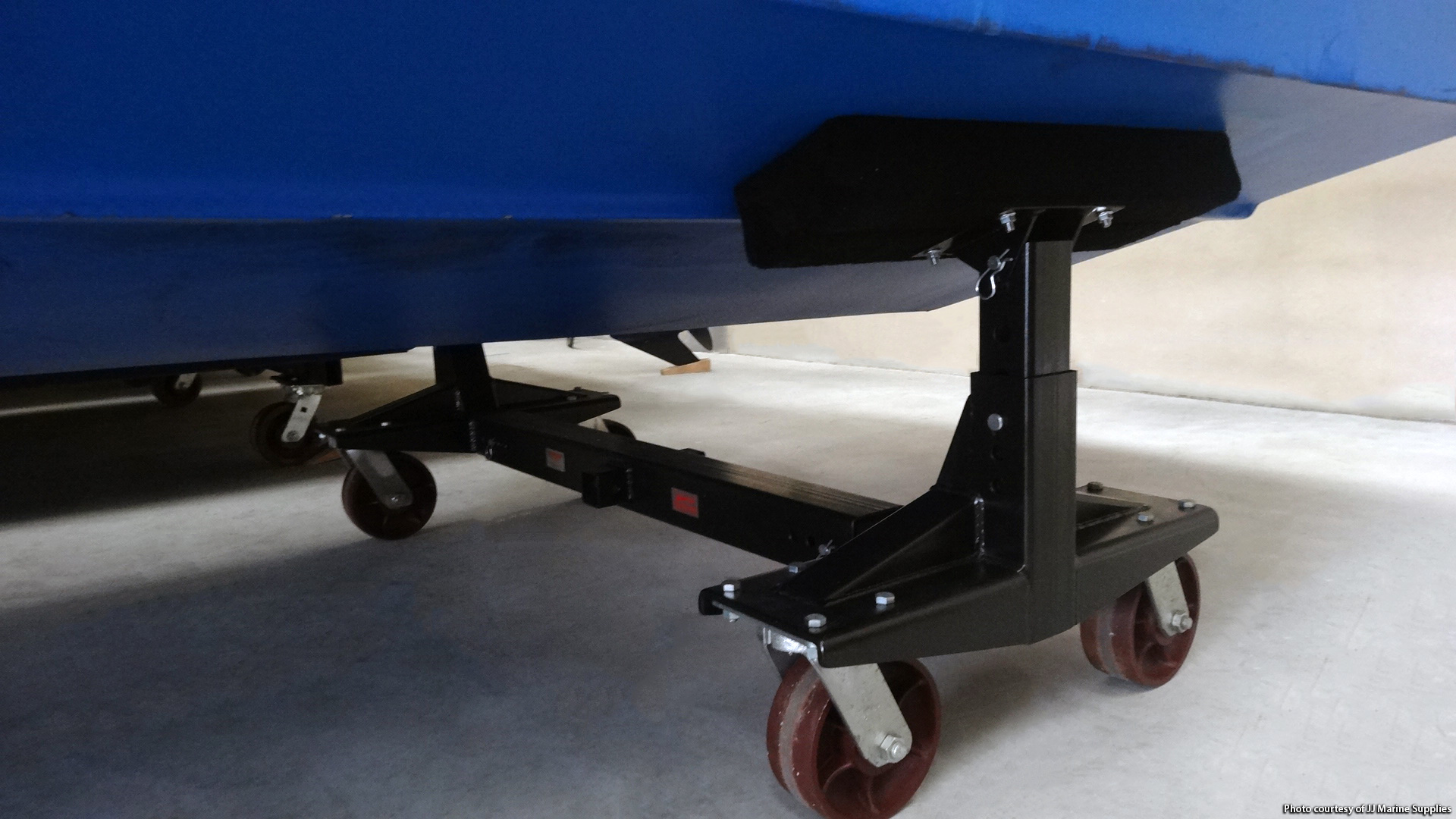

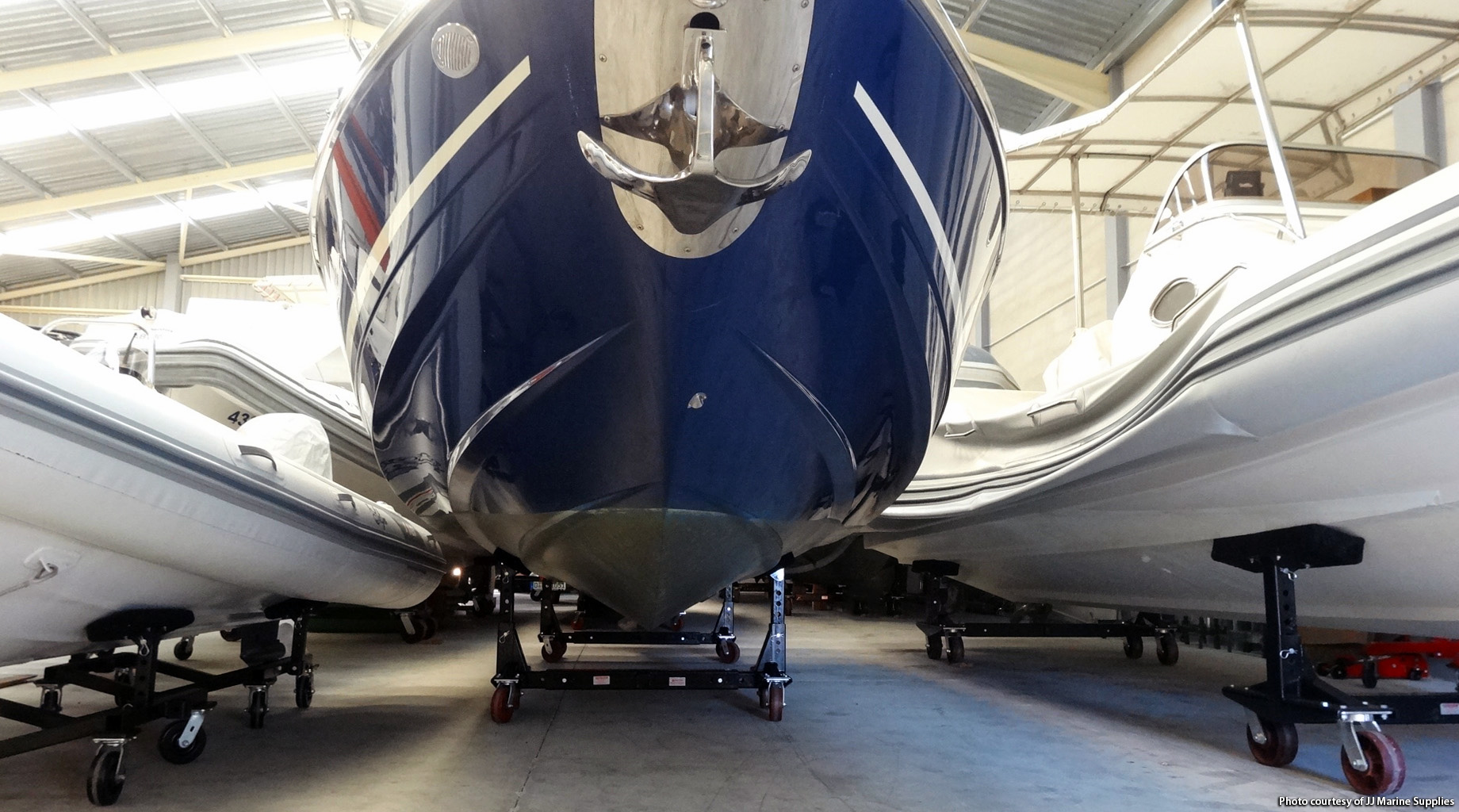

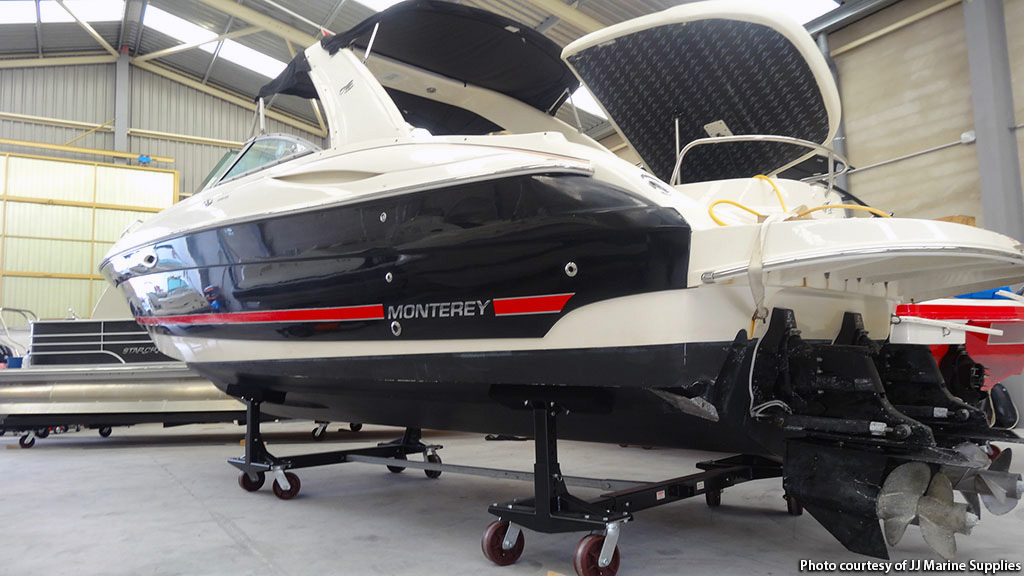

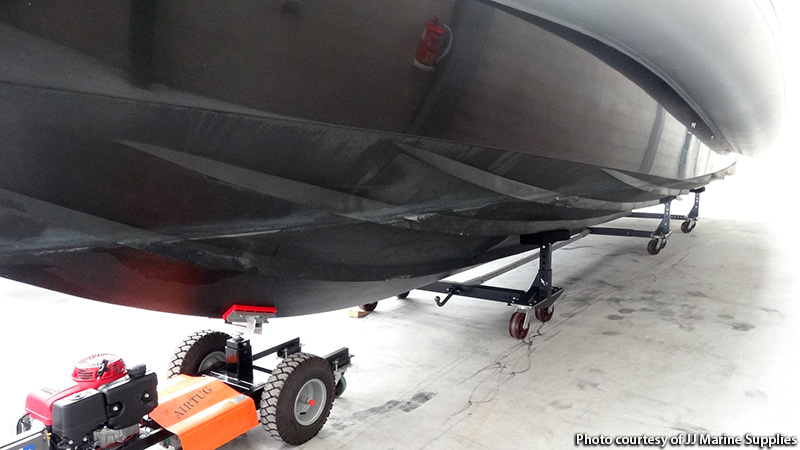

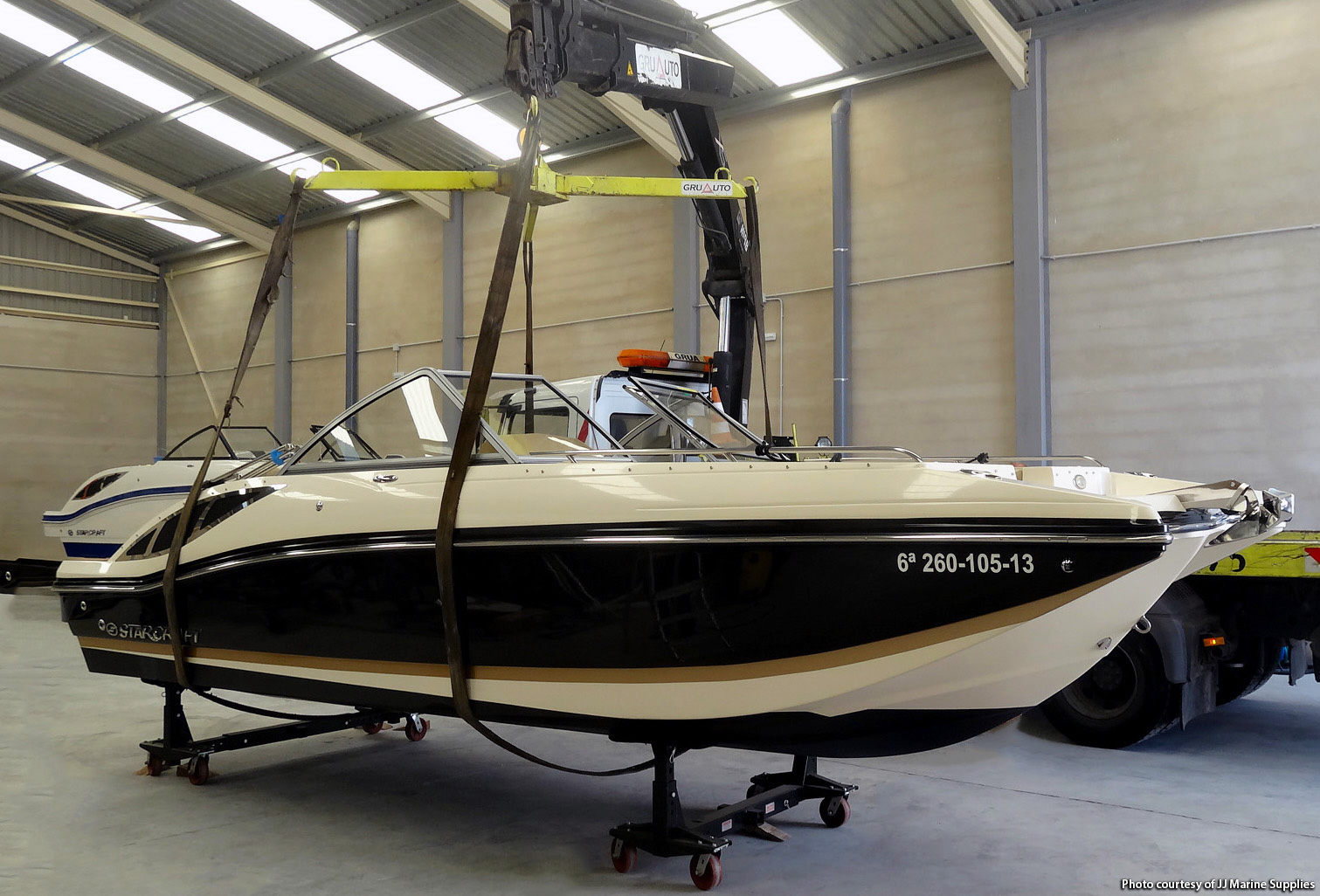

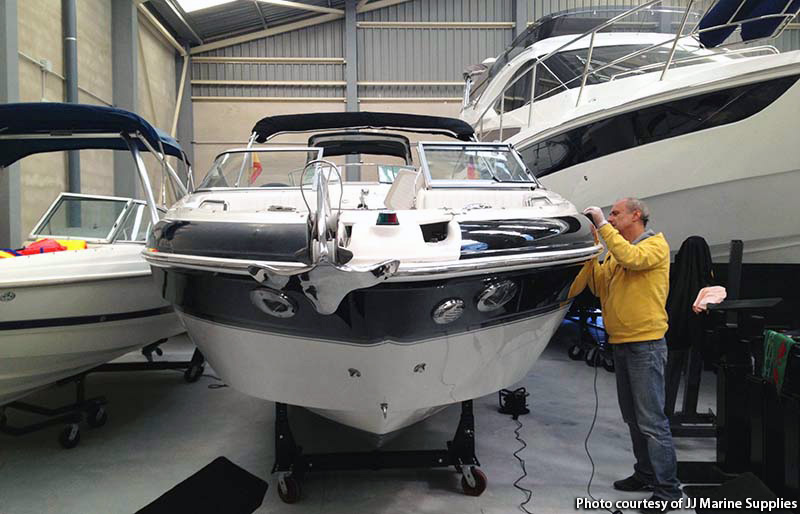

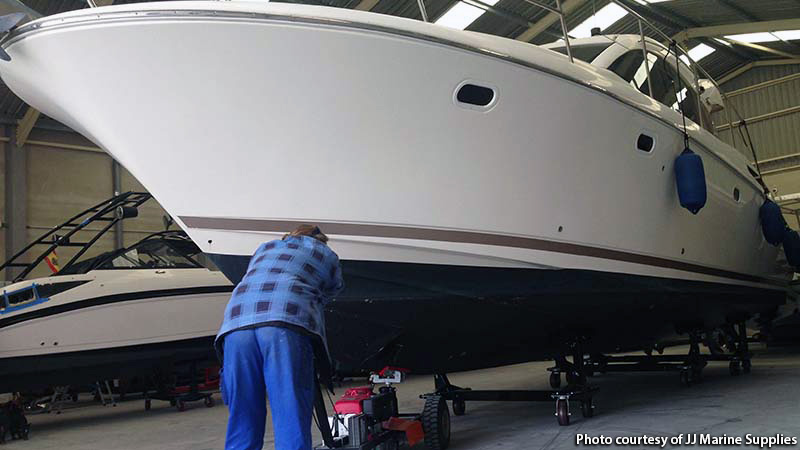

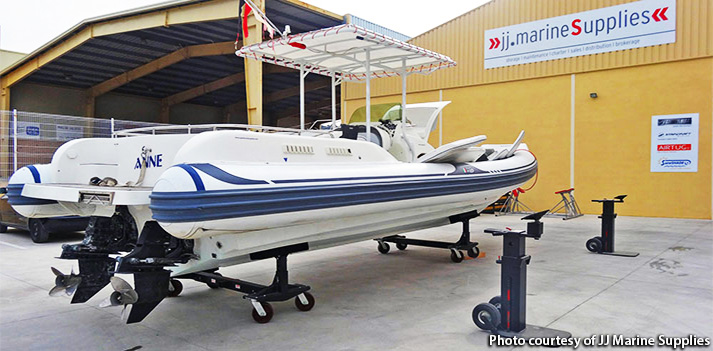

    Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo Yardarm Boat Dolly Image Gallery Photo
