Yardarm Marine Products - Made In Indiana

Pontoon Dollies

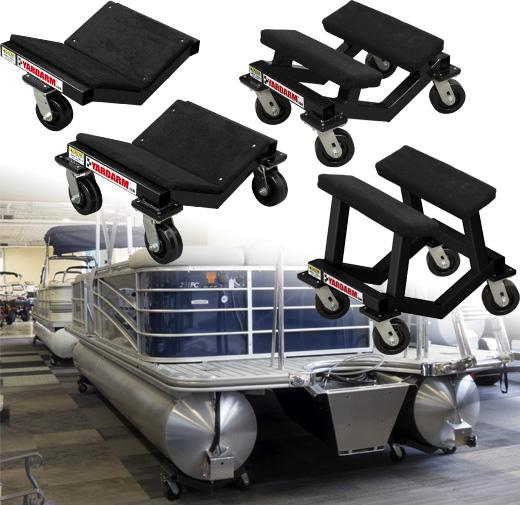

Yardarm Pontoon Dollies

Key Benefits:

  • Self-centering dolly used in sets of four (4)
  • For all sizes of pontoons
  • Large carpeted bunks disperse weight over a large area to prevent damage - especially important for dollies placed at the rear of boats with large motors and heavier tritoon boats
  • Large 5" x 2" phenolic swivel casters rated at 1000 lbs (450 kg) each - important because light duty wheels can fold or bend the rig when rolling over cracks and expansion joints under load - YARDARM DOLLIES ARE BUILT TO STAND UP IN THE REAL WORLD
  • Tough 11 gauge (1/8" thick) steel construction
  • 5/8" thick caster base plates w/CNC threaded mounting holes
  • Fully welded for the toughest durability, not bent and stitch welded
  • High quality marine grade carpet
  • Powder Coat Tough Finish (for a great look in your showroom)
  • Optional galvanized finish for extra durability in salt water applications
  • NEW PT03 & PT04 "Tritoon Dollies" solve the problem of performance foil and lifting strake interference

Available Models:

2 Wheeled Pontoon Dolly

Low Profile
Part Numbers / Capacities
PT01 - Set of 4 PT01-2 - Set of 2
Capacity Each: 2,000 lbs (900 kg)
Yardarm PT01 Pontoon Dolly



4 Wheeled Pontoon Dolly

Low Profile
Part Numbers / Capacities
PT02 - Set of 4 PT02-2 - Set of 2
Capacity Each: 3,000 lbs (1,369 kg)
Yardarm PT02 Pontoon Dolly



4 Wheeled Tritoon Dolly

For Tritoons With ROUND Center Pontoon
Part Numbers / Capacities
PT03 - Set of 4 PT03-2 - Set of 2
Capacity Each: 3,000 lbs (1,369 kg)
10" (25.4 cm) Clearance Keel To Floor
Yardarm PT03 Tritoon Dolly
Tritoon dolly solves the problem of performance foil and lifting strake interference.
Yardarm PT03 Tritoon Dolly Performance Foils and Lifting Strakes Diagram



4 Wheeled Tritoon Dolly

For Tritoons With OVAL Center Pontoon
Part Numbers / Capacities
PT04 - Set of 4 PT04-2 - Set of 2
Capacity Each: 3,000 lbs (1,369 kg)
18" (45.7 cm) Clearance Keel To Floor
USE WITH TTLK6 TRAILER LIFT KIT
Yardarm PT04 Tritoon Dolly
Tritoon dolly solves the problem of performance foil and lifting strake interference.

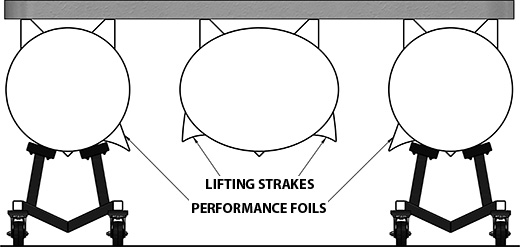

Yardarm PT04 Tritoon Dolly Performance Foils and Lifting Strakes Diagram

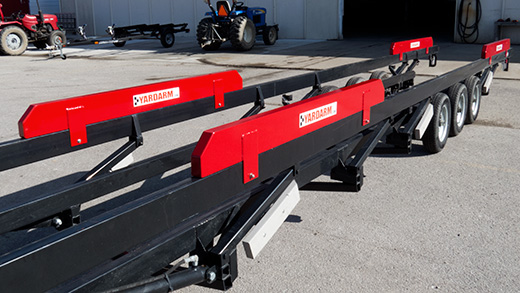

Pontoon/Tritoon Trailer 6" Lift Kits

Yardarm Pontoon/Tritoon Trailer Lift Kit

Key Benefits:

  • Raises pontoon trailer rails 6" (15.25 cm)
  • Use with oval tritoon dollies to get the extra height needed in the trailer to avoid hitting the lifting strakes on the trailer frame.
  • Includes low profile stainless steel mounting hardware (drilling required)
  • Fits over 2" trailer rails
  • Solves motor mount water deflection plate interference problems
  • Light weight heavy duty aluminum construction
  • Powder coat tough finish
  • Includes set of 4 riser bunks
  • Includes rubber grip tape on horizontal suface

Part Number
TTLK6 - Set of 4

Image Gallery:

Click Images To Expand

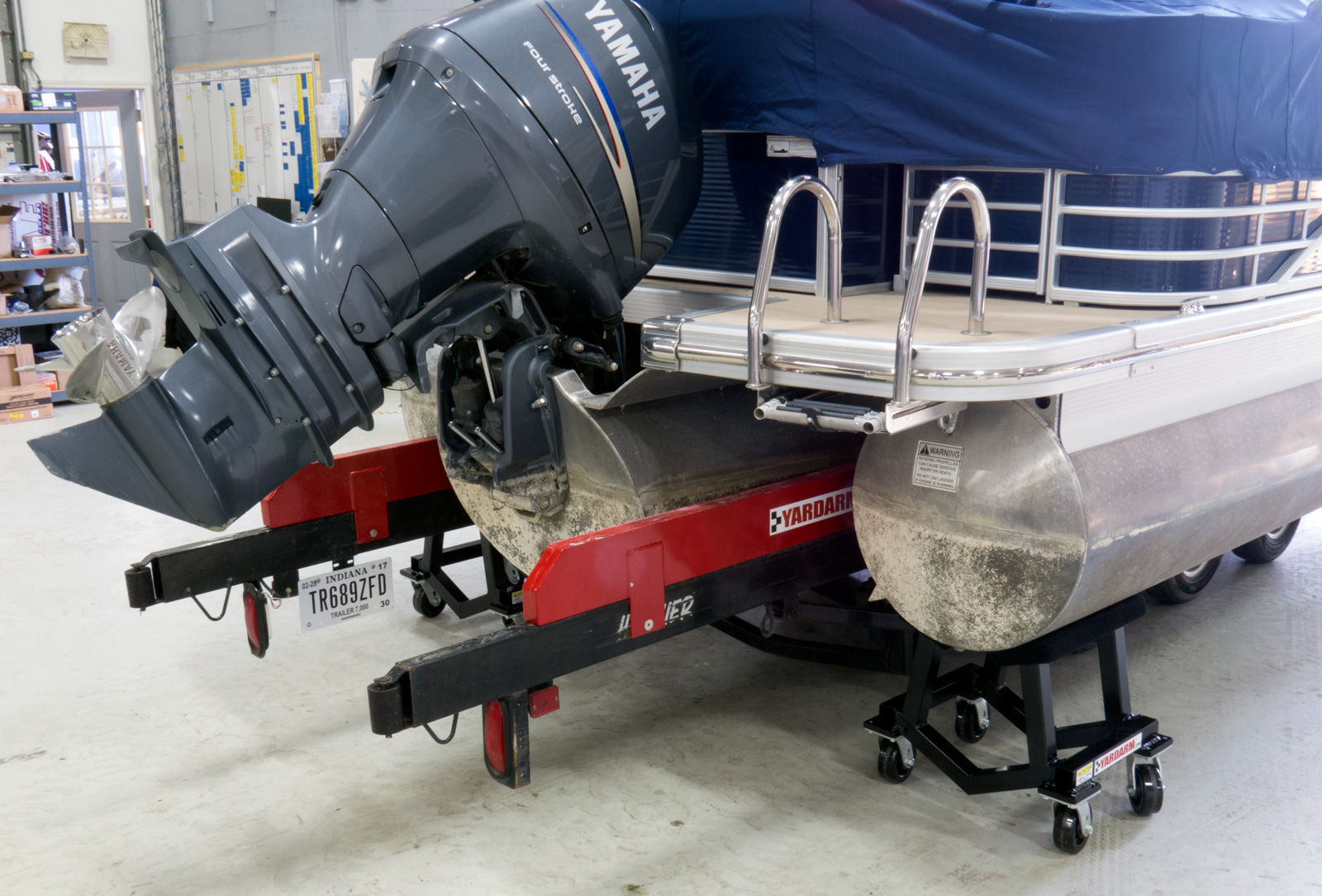

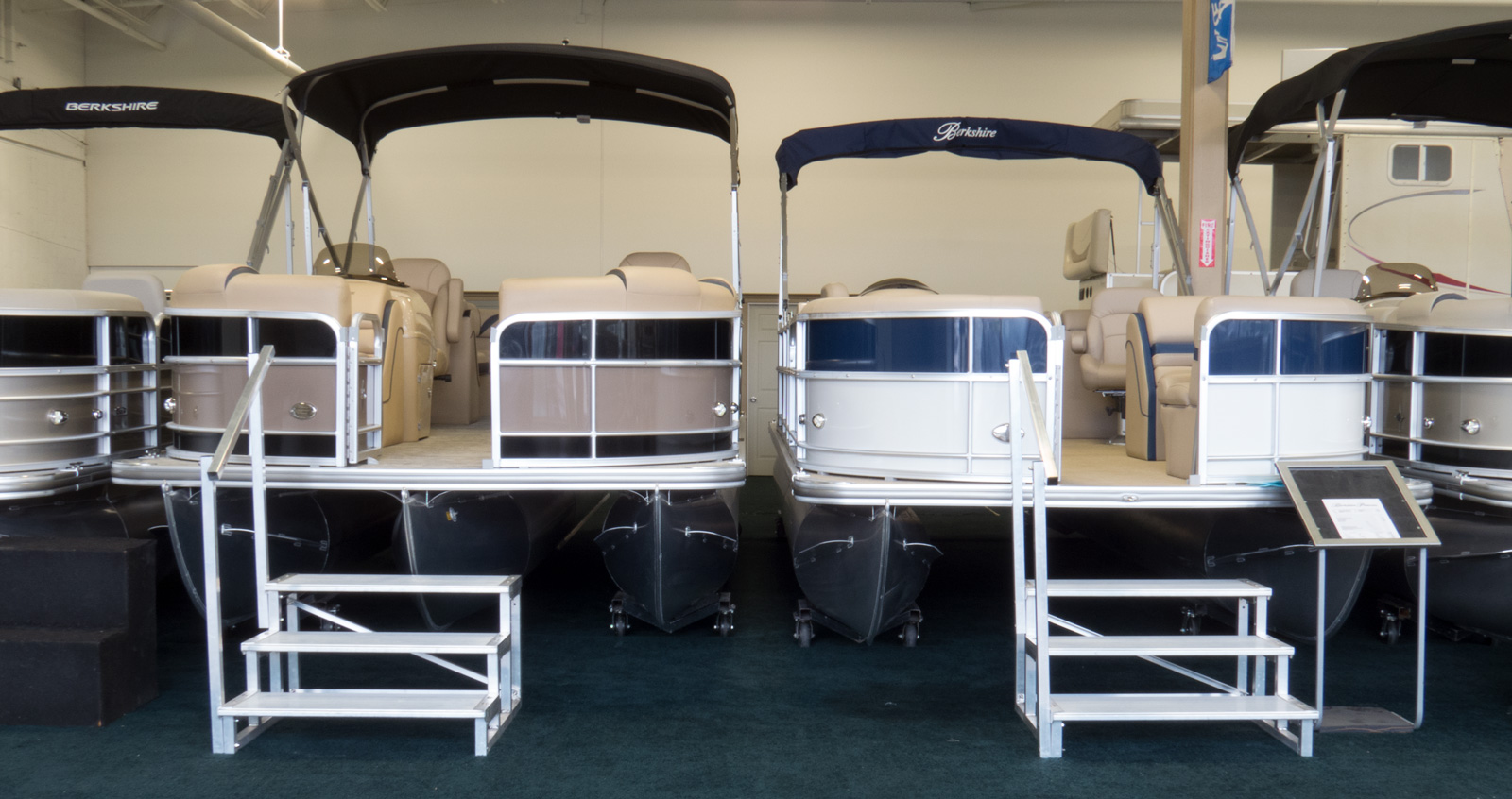

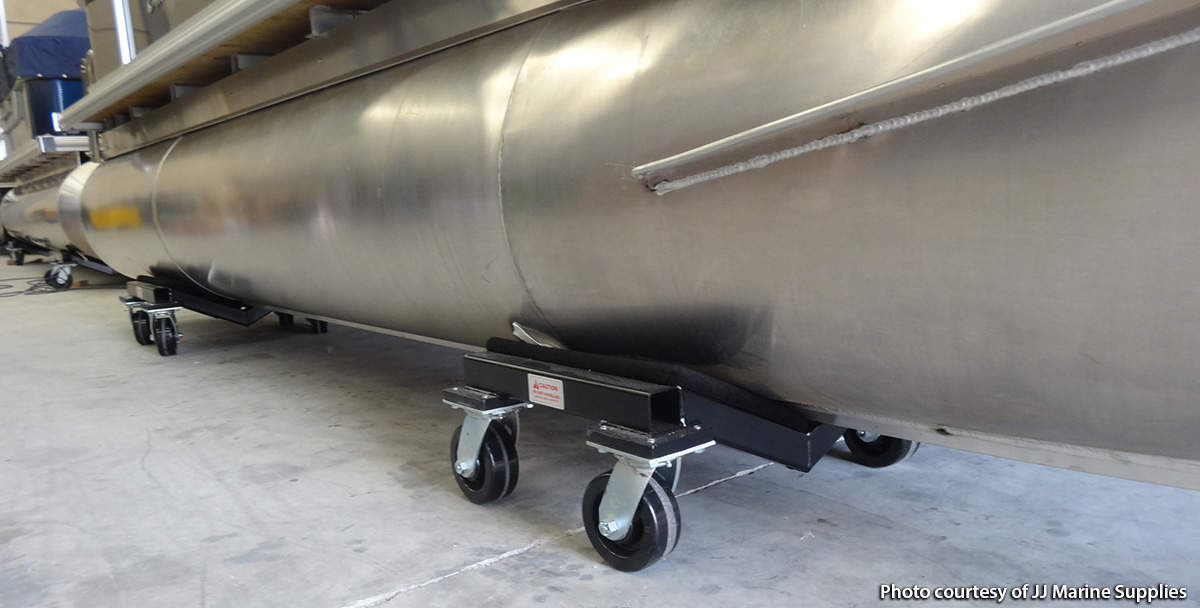

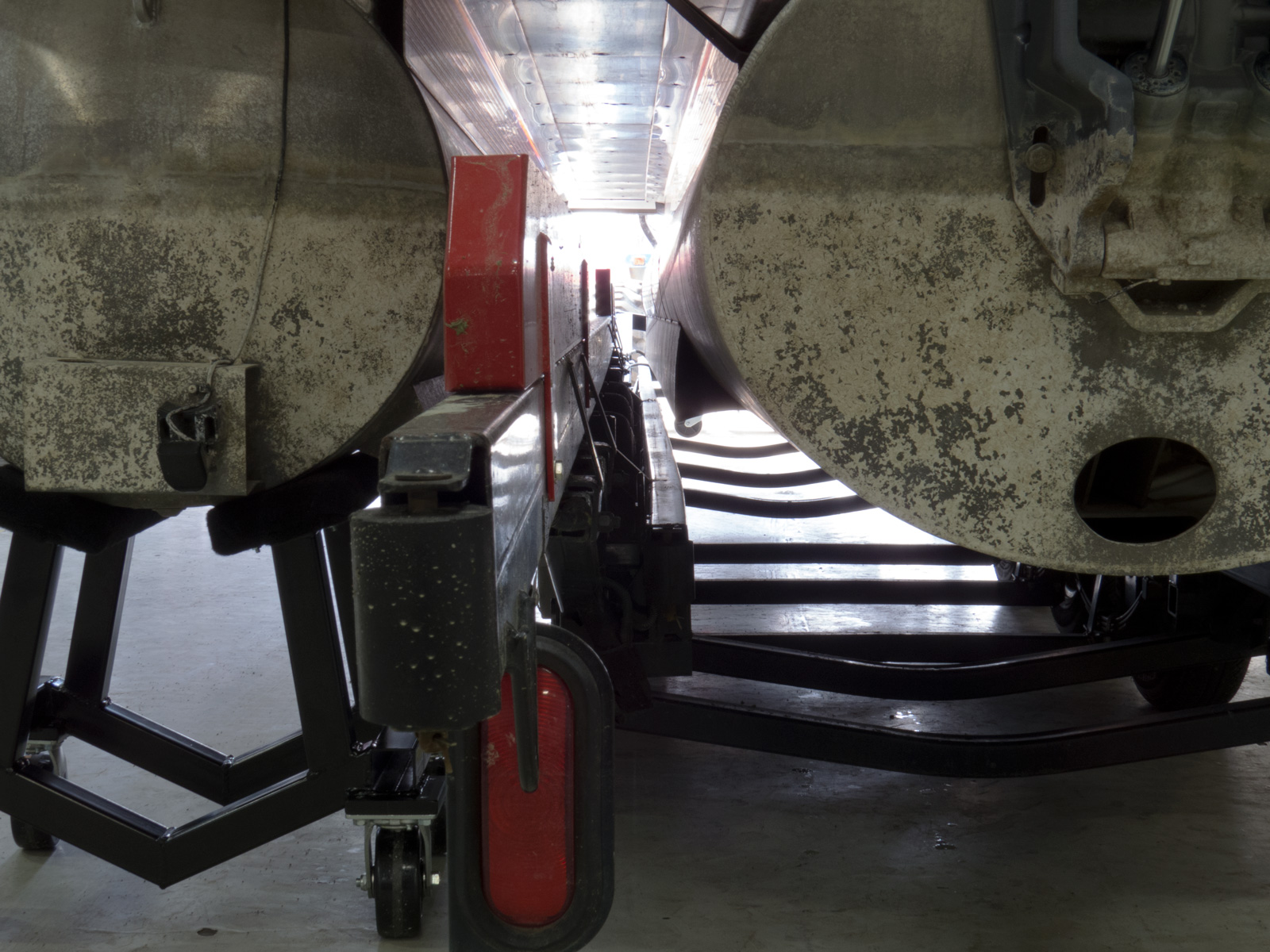

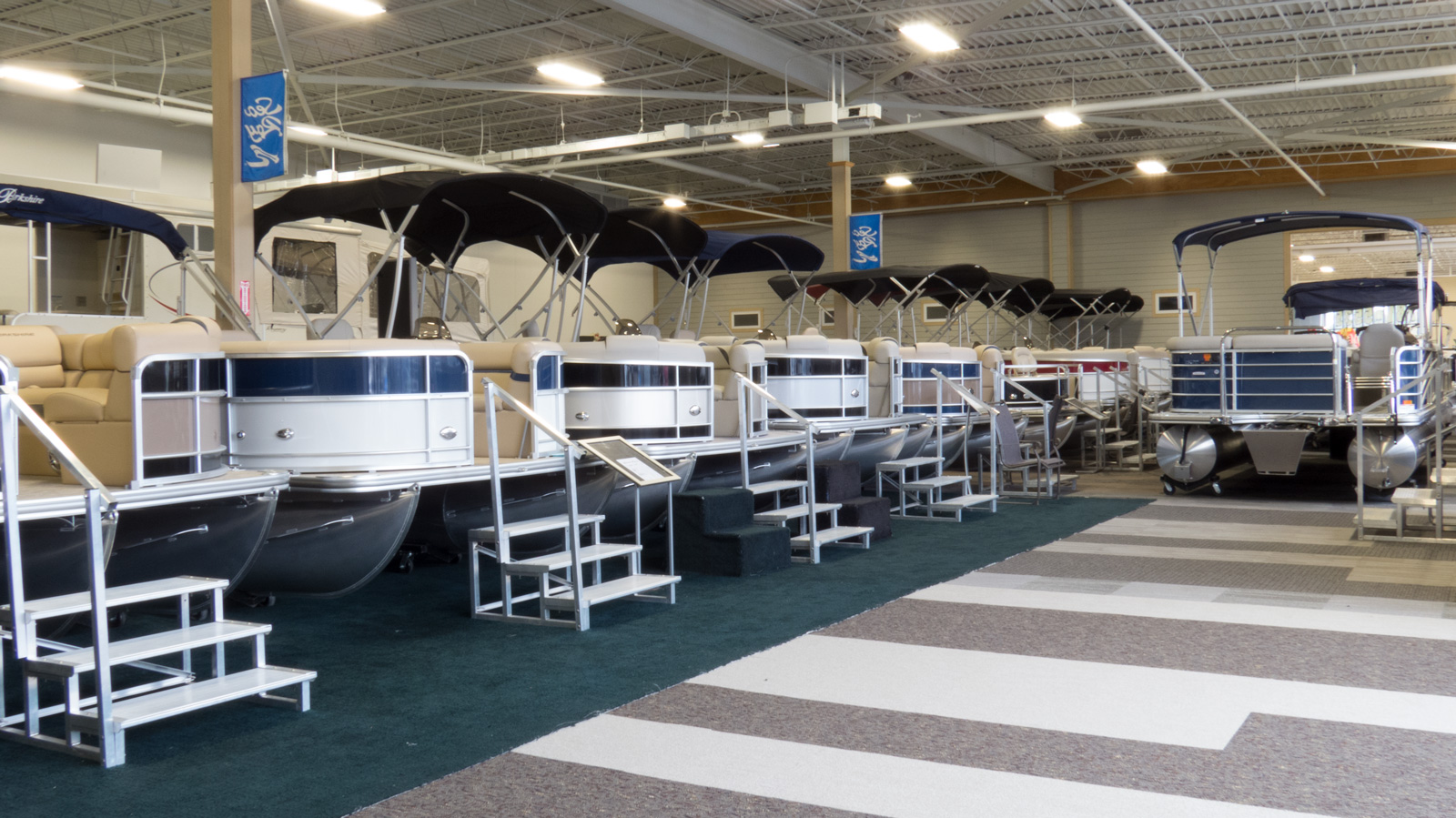

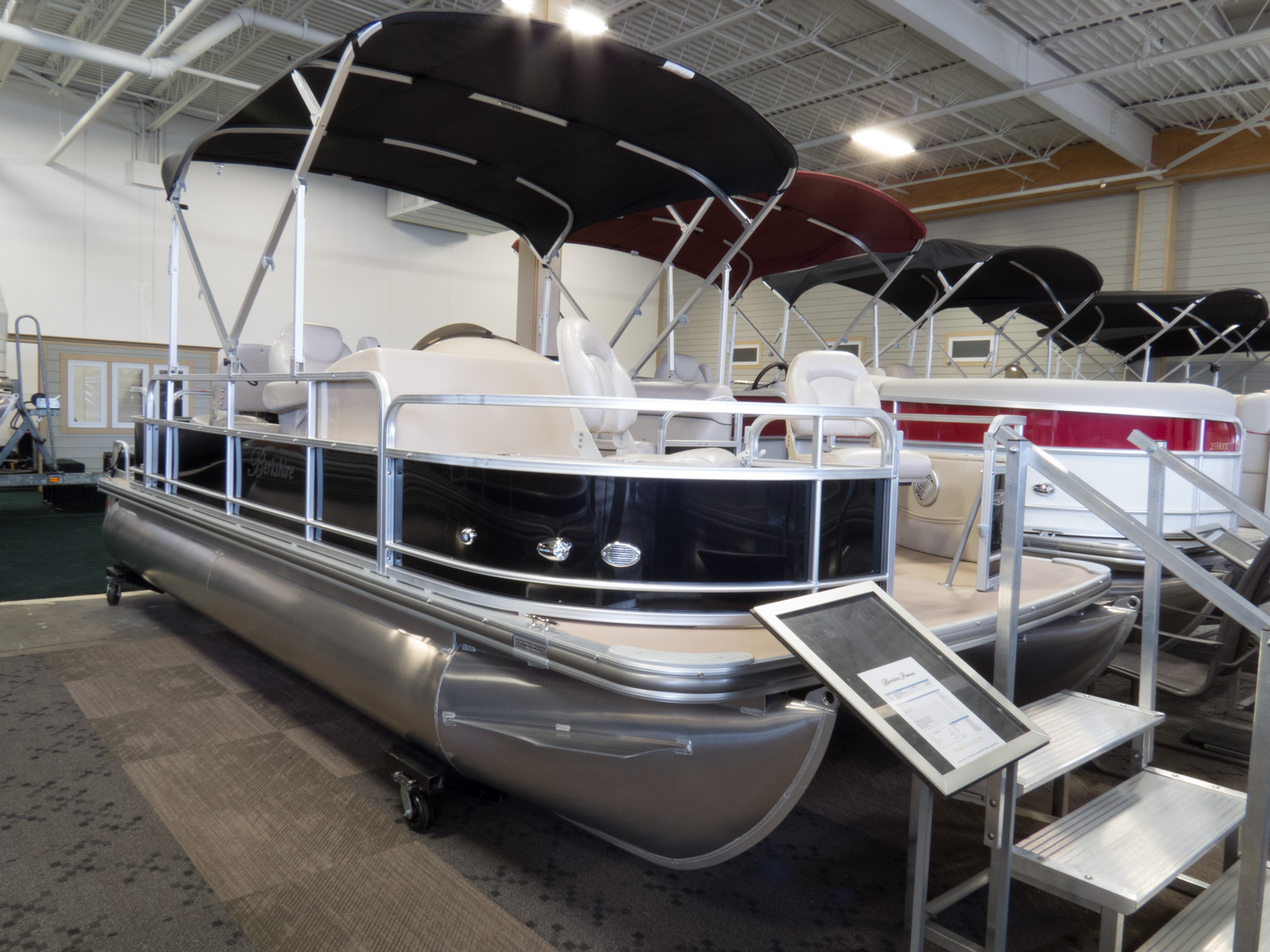

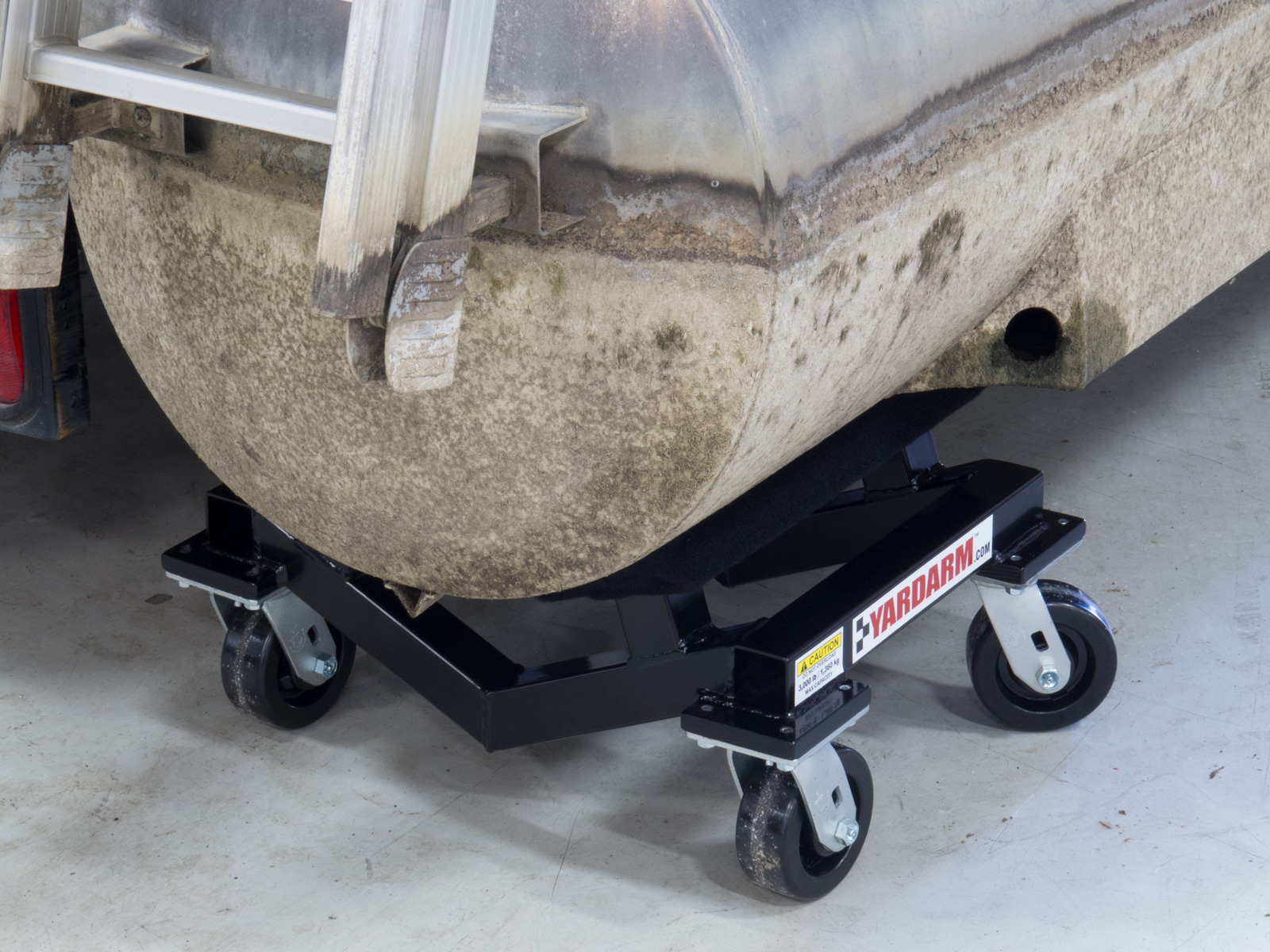

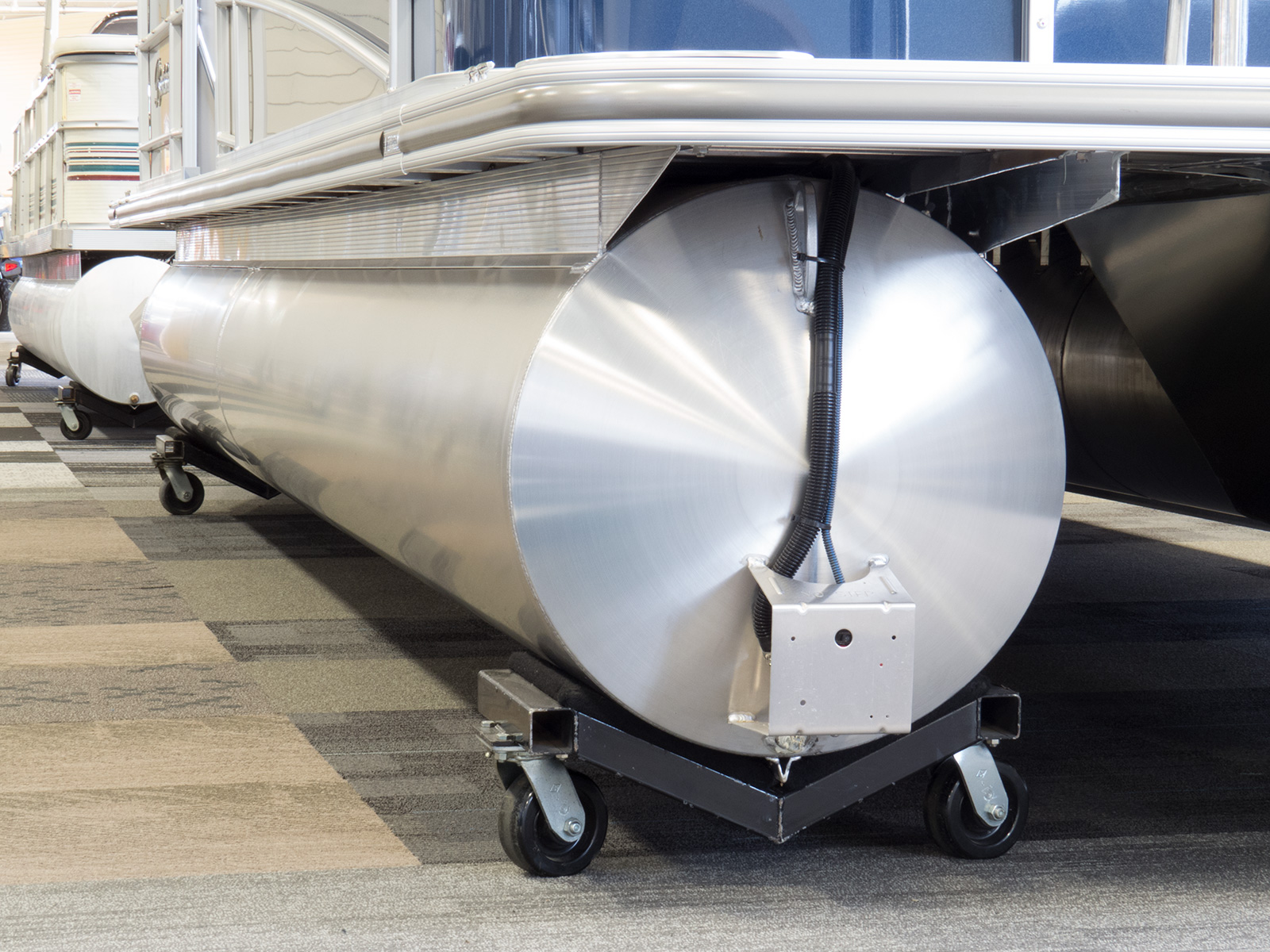

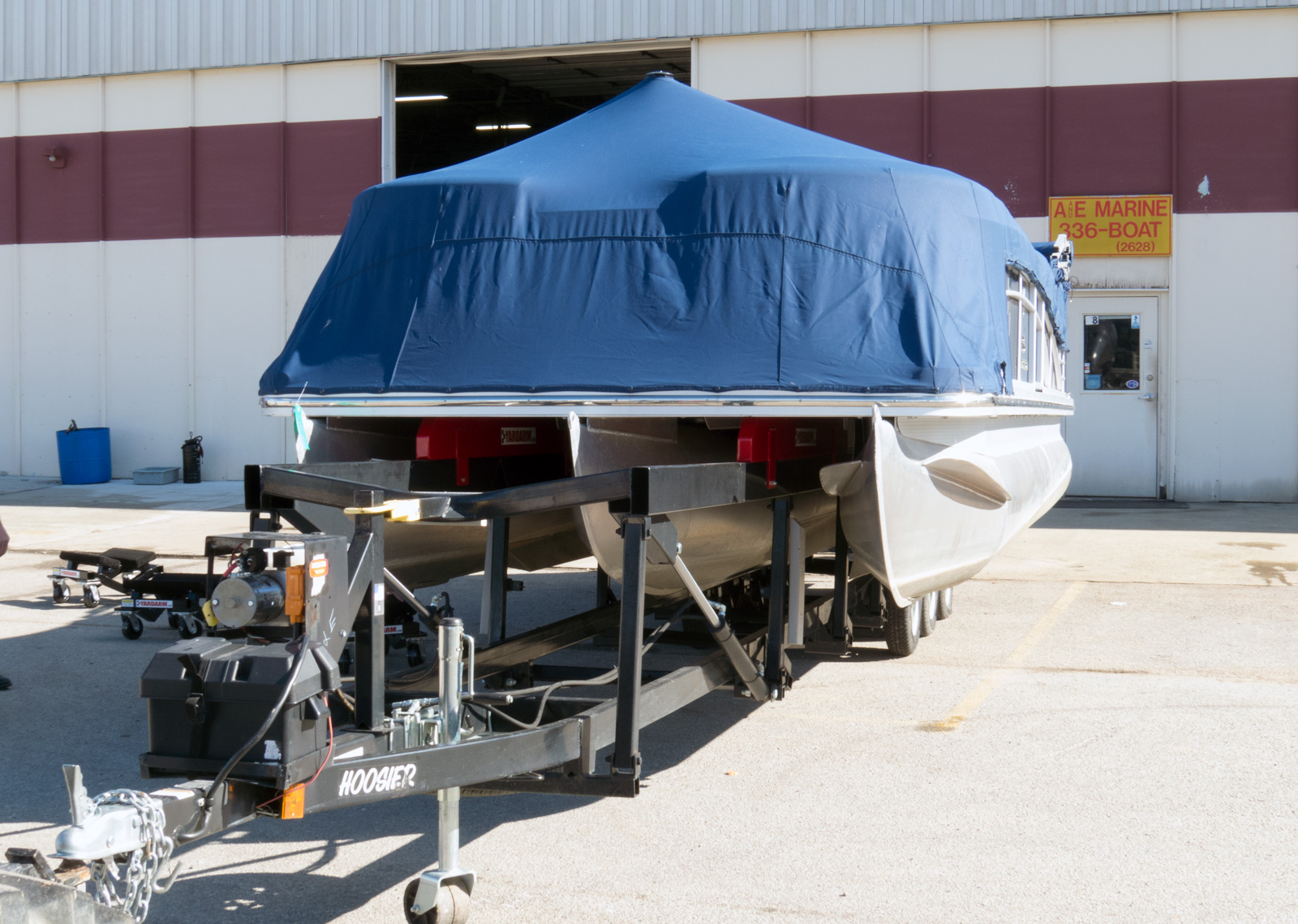

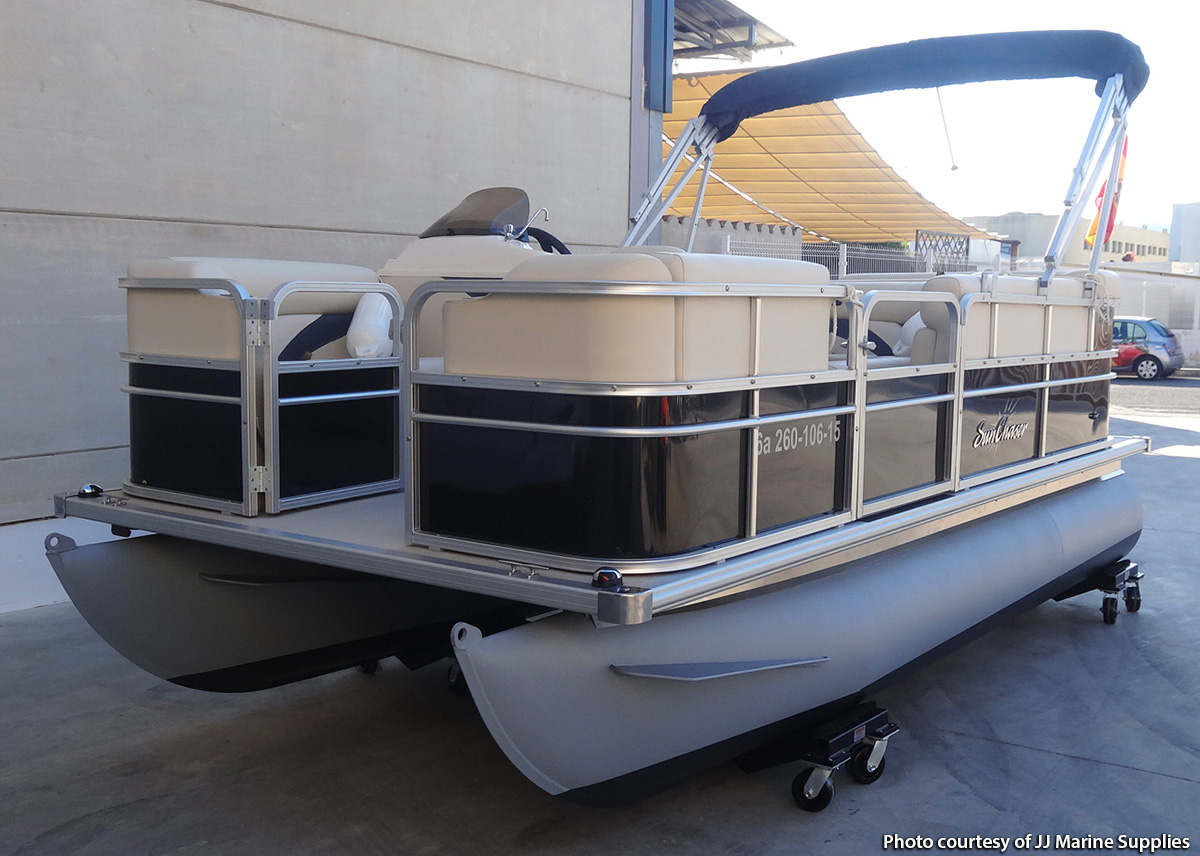

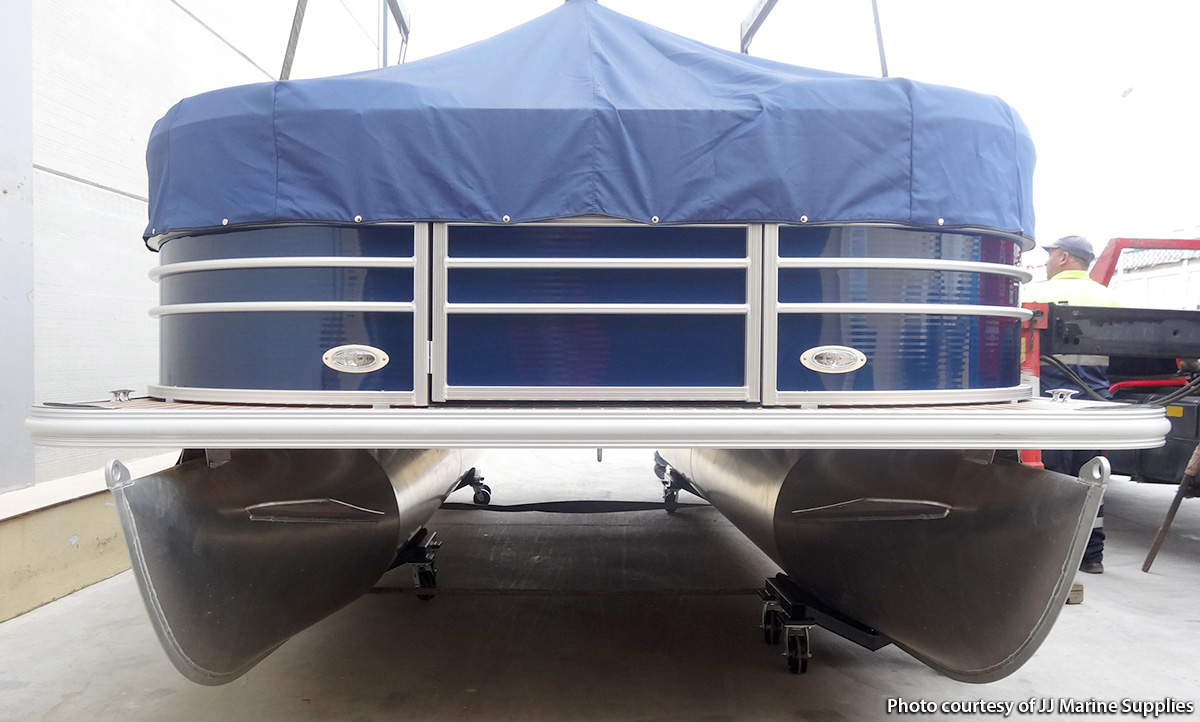

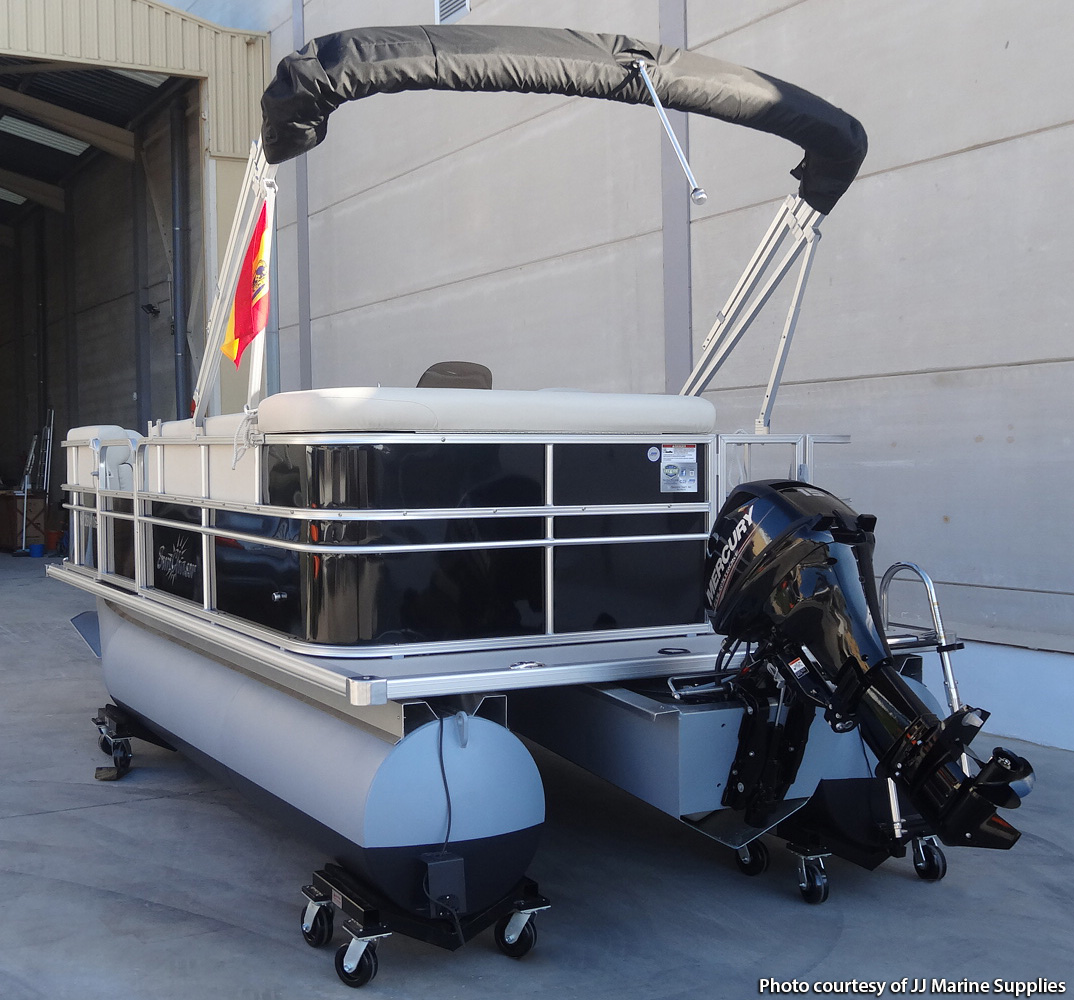

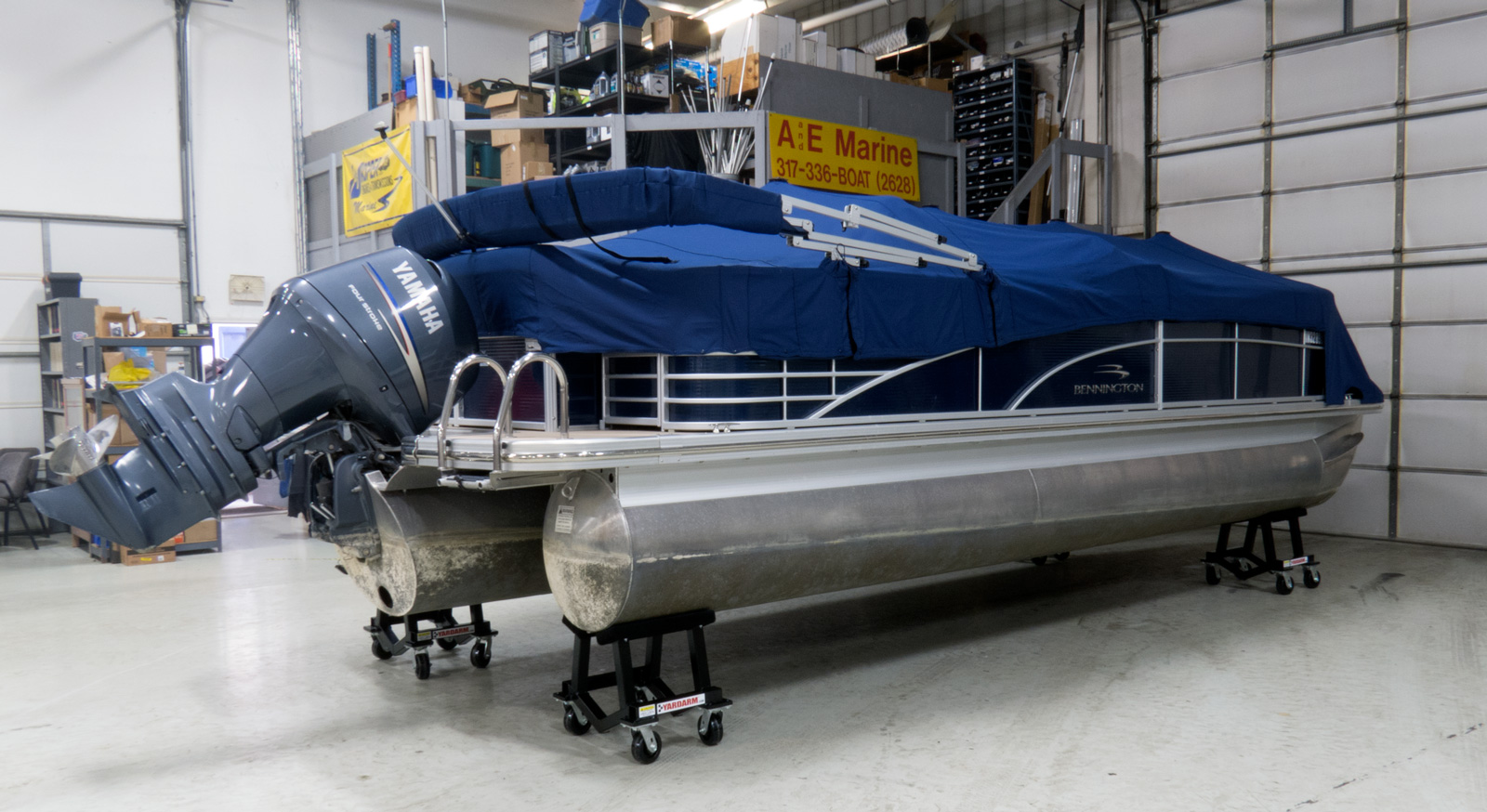

Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo
