3-IN-1 Abrasive Blast Machines

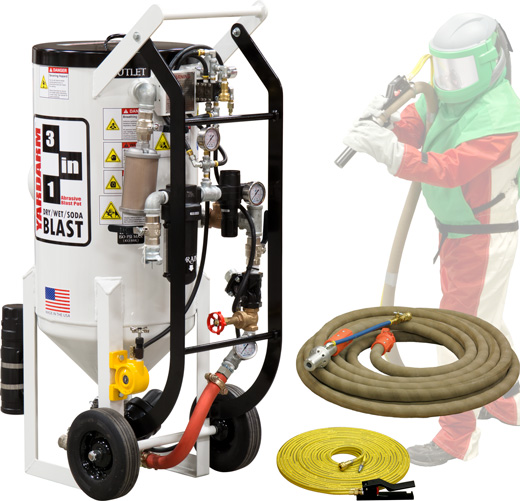

Yardarm 3-IN-1 Abrasive Blast Machines
Includes control handle, 55' control hose, 50' blast hose & WIN® Nozzle

Key Benefits:

  • The perfect solution for all marine related abrasive blasting needs
  • 3-IN-1 design allows for:
            1. DRY blasting with standard abrasives
            2. WET water induction dust suppression
            3. SODA and other soft abrasive blasting
  • Premium abrasive metering valve with standard abrasive metering sleeve and multi-port fixed orifice sleeve for soft abrasives
  • Water Induction Nozzle System (WIN®) for wet dust suppression features a high production double-venturi design
  • Moisture separator with 50 micron filter element
  • Galvanized piping for corrosion resistance
  • Heavy duty full port ball valves
  • NEW on demand vibrator for aiding in abrasive flow
  • Pressure regulator with liquid filled gauge
  • Differential pressure gate valve provides precision control of abrasive flow rate
  • Blow-down muffler reduces noise
  • Included lid and screen to keep abrasive free of contaminants
  • Valve guard to protect components

Available Models:

1.5 Cu. Ft
(43 Liter)
Abrasive Capacity

Part Number
YA-31-15
Yardarm 1.5 cu ft 3-IN-1 Abrasive Blast Machine


3.5 Cu. Ft
(100 Liter)
Abrasive Capacity

Part Number
YA-31-35
Yardarm 3.5 cu ft 3-IN-1 Abrasive Blast Machine


6.5 Cu. Ft
(185 Liter)
Abrasive Capacity

Part Number
YA-31-65
Yardarm 6.5 cu ft 3-IN-1 Abrasive Blast Machine


Soda Blasting Media

Part Number
SODA260SKID-YA
2,800 lbs (1,270kg) skid of formula 260 abrasive blasting soda
Abrasive blasting soda

Yardarm Abrasive Blast Machine Warranty5 Year / 10 Year Warranty:

Yardarm 3-IN-1 blast machines feature a 5 year warranty on the complete blast machine and a 10 year warranty on the pressure vessel! See warranty documentation for full details.

Click Here For Full Warranty Terms


Yardarm 3-IN-1 Abrasive Blast Machine Manual 3-IN-1 Blast Machine Manual:

Includes parts lists and accessories

Click Here For Manual


Available Accessories:

Abrasive Blasting Respirators

RPB Nova 3 Respirator Package
Part Number
NV3-703-50-PCT
RPB® Nova 3® Respirator Package with COOL TUBE Climate Control Device. Includes respirator helmet, 50' breathing air supply hose, and airline filter.
Respirators do not remove carbon monoxide




Bullard GENVX Respirator Package
Part Number
GENVX-PKG-CT
BULLARD® GENVX® Respirator Package with CT30 COOL TUBE Climate Control Device. Includes respirator helmet, 50' breathing air supply hose, and airline filter.
Respirators do not remove carbon monoxide


After Coolers:
Cools and removes moisture from compressed air to aid in trouble-free abrasive blasting.

250 CFM After Cooler
Part Number
DLAC-250-360
Premium portable after cooler, powder coated frame and fork pockets, includes filter/regulator/oiler pack for air motor, oil removing coalescing filter, and moisture separator.
250 CFM @ 100 PSIG
360 CFM @ 150 PSIG



450 CFM After Cooler
Part Number
DLAC-450-575
Premium portable after cooler, powder coated frame and fork pockets, includes filter/regulator/oiler pack for air motor, oil removing coalescing filter, and moisture separator.
450 CFM @ 100 PSIG
575 CFM @ 150 PSIG




Yardarm® 3-IN-1 Abrasive Blast Machines
The perfect tool for marine coating and build-up removal

Marine Coating and Build Up Removal
